The situation is such that the ECU boxes can not be read at the same time without changing the auto profile. Those. I can add pids for the ATU, but to display the parameters it will be necessary to change the profile, and the diagnosis of the engine ECU stops. ic....... ok, so that's why in the sz ...

variant 2 result regards,
singachu

here it is

regards,
singachu

ok. I will test it tonight and will come back with the result.

regards,
singachu

kdika писал(а):I'll see what can be done with the ECU AT.
How will the test version be ready - I'll write

That's great. Looking forward to it.

This attachment I just take again for ECU AT

regards,
singachu

wow, it's work, very nice !
Thanks a lot.

I'll create another thread PID's related..still corious about ATF temperature, matic lever position and matic gear position.

regards,
singachu

Hello. Your adapter does not correctly return data - an extra byte at the beginning of the answer. Let's try to get around this problem programmatically. 'programmatically' means there will be software update ? or is it just replace Suzuki_JDM_KWP.ecuxml ? And you did not enter the correct command ...

Hello,

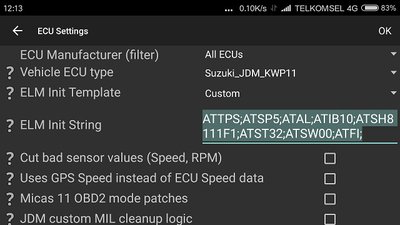

preparation : suzuki sensor screen shot : Log.txt : btsnoop_hci.log, just in case it will help : Result still the same, it's test with just key on, engine not started.

regards,
singachu

With HobDrive Connection to ECU is ok, green circle in bottom left corner. But almost all sensor reading was a mess. Throttle Position always zero and not response to accelerator pedal. Coolant Temp with negatif value, Air Temp with too high value, RPM and speed is jumping all over the place even ...

btw tried another ELM327 v1.5, tes using ELM327 identifier, all command from 1.0 to 1.4 supported without exception. But both sz viewer and hobDrive can't connect to ECU..... You need to see how this adapter responds to the command ATPPS https://hobdrive.userecho.com/knowledge-bases/4/articles/222 ...

any thought ?
btw tried another ELM327 v1.5, tes using ELM327 identifier, all command from 1.0 to 1.4 supported without exception. But both sz viewer and hobDrive can't connect to ECU.....

Hello, I'm from Indonesia, car : Aerio 2003 Engine Code : M15A (petrol 1500 cc VVT) tested OBD dongle : OBDLINK MX and OBDII ELM327 v 1.5 (generic) Phone : Android - Xiaomi Redmi 3 I tried many OBD softwares, but only Hobdrive and another software is OK (sv suzuki, sorry to mention) that worked ...
